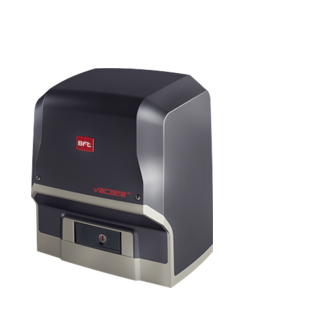

Fast-action 24V operator for intensive use for sliding gates weighing up to 500kg and speed without load 25 m/min,
or up to 1,000kg and speed without load 18 m/min. The maximum speed actually achievable by the gate panel depends on the condition of the gate.
Operator fitted with electromechanical limit switch. Torque control thanks to D-Track technology.
The control unit is set up for communication via the U-Link protocol. The ideal solution for situations which require fast operating speeds,
reduced waiting times and high levels of security.

Speed: The fast opening of the ARES SMART BT reduces waiting times and allowing quicker access, reducing the risk of an accident.

Security: The fast operating speed means that the ARES VELOCE SMART BT A closes quickly, reducing the risk of entry by unauthorised people.

U-Link: The ARES VELOCE SMART BT operator is compatible with the U-Link communication protocol, through the integrated MERAK SV 24 V control panel.

D-Track: An intelligent torque management system which updates the level of torque required to perform the operation, allowing it work at the optimum level regardless of weather conditions, temperature or the degree of wear and tear on the device.

Personalised key: The lever release makes it easy to release the motor and the personalised key is unique, providing increased security.

Screws on the front: By putting the fastening screws on the front of the casing, installation and maintenance are easier and more convenient, even in confined spaces.

24V
A precise, safe and reliable technology Bft 24V technology ensures optimum performance with a precise adjustment of slowdown in closing and opening. Safety is another key aspect, ensuring the immediate stopping and reversal of movement in the presence of obstacles. The efficiency of the technology is a guarantee of the product’s reliability.

ER – READY
The new coding system for direct cloning of remote controls Based on microprocessor technology, this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control. In fact, the first remote control “teaches” the second one the correct code which is automatically saved in the receiver the first time it is used. Everything occurs at the highest levels of security thanks to the use of the Rolling Code safe transmission system.

Dynamic Path Tracking
The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not “read” the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.

EE LINK
For fast and safe programming. EELINK is a system developed by BFT which, by means of connection to handheld programmers (Unipro, Uniradio and Proxima), makes it possible to transfer data from automatic systems to PCs and vice versa. Thus EEdbase or U-base, the databases of the information stored in the installed systems, are constantly updated. Thanks to this software it possible to associate the necessary personal details with each system: owner’s address and details, name of maintenance technician, names of every remote control holder, etc. With EElink, just press a few buttons to easily manage the customer base or preventive maintenance. Even operations that were once complex become easier: for example, reconfiguring the control unit or the radio receiver in case of replacement or the setup of a control panel, starting from a standard or custom configuration.

Products list

U-Link
A single communication platform for all types of control units and receivers. The innovative interconnectivity systems developed by Bft along with wireless connection solutions in the field of access point automation become integrated through the new U-link system communication protocol. A technology designed and developed to operate using specific gateways for any type of physical media and communication protocol. To fully facilitate installers in creating the system and in maintenance, Bft can offer solutions based on Bluetooth transmission systems in local and TCP/IP environments for remote connection. U-Link ensures an absolutely stable standard, correct communication, as well as secure data protection thanks to two levels of encryption, offered by the data encryption system and password of the protocol and by the underlying communication system. – U-Link is a technological platform that forms the heart of Bft products – U-link uses an open approach: by changing the B-Eba, Bft proprietary gateway, it is possible to adapt to many different communication languages – U-link is flexible: it can work with or without a network connection, depending on the B-Eba gateway installed – U-Link enables remote maintenance of the products thanks to two-way communication – U-link is scalable: an infinite number of objects can be added to a U-link network – U-Link allows the creation of groups of products: various B-Ebas can be grouped to allow individual or group control of the associated products U-link is an innovation that turns products into Bft solutions.
