©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2610F-I(S)      Key Features   Up to 1.3 megapixel (1280 x 960) resolution   Standard video compression with high compression ratio   Progressive scan CMOS, capture motion video without incised margin   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range   Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB   IR cut filter with auto switch   PoE (Power over Ethernet)   3D DNR   DWDR   Ingress Protection level: IP66   Auto-iris, electronic shutter for different surveillance environments   Other functions: reset, heartbeat, mirror, etc.   3-axis adjustment  Specification   Model  Parameter  DS-2CD2610F-I(S)  1.3 Megapixel Bullet Network Camera  Camera  Image Sensor 1/3″ Progressive Scan CMOS  Min. Illumination  0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  0.014 Lux @(F1.4,AGC ON), 0 Lux with IR  Shutter Speed 1/25 s to 1/100,000 s  Lens 2.8 – 12 mm @ F1.4,Angle of view: 98°-30.2°  Lens Mount Φ14  Day &Night IR cut filter with auto switch  Digital Noise  Reductio…
Key Features
 Up to 1.3 megapixel (1280 x 960) resolution
 Standard video compression with high compression ratio
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
 Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 3D DNR
 DWDR
 Ingress Protection level: IP66
 Auto-iris, electronic shutter for different surveillance environments
 Other functions: reset, heartbeat, mirror, etc.
 3-axis adjustment
Specification
Model
Parameter
DS-2CD2610F-I(S)

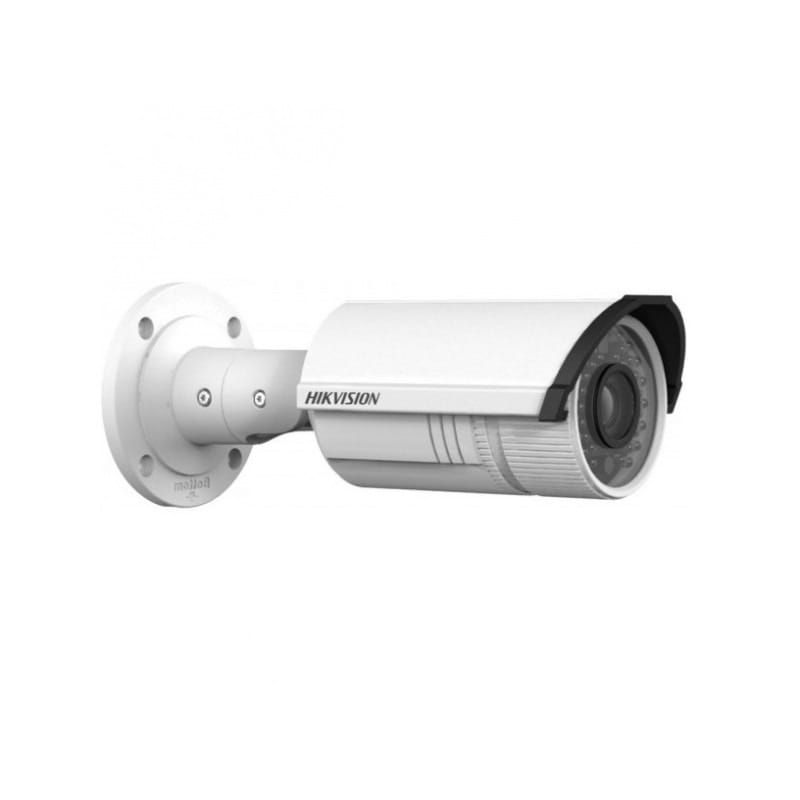

1.3 Megapixel Bullet Network Camera
Camera
Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/25 s to 1/100,000 s
Lens 2.8 – 12 mm @ F1.4,Angle of view: 98°-30.2°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
