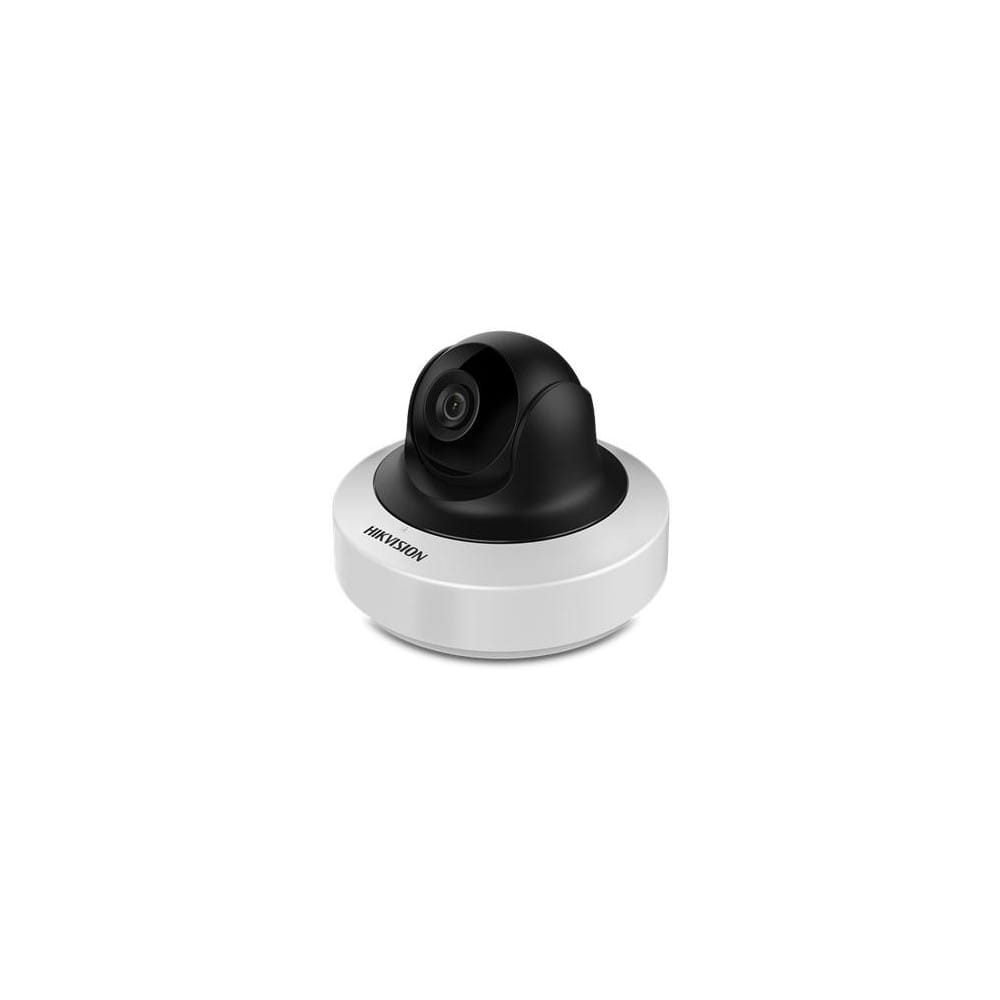

DS-2CD2F22FWD-I (W)(S)
2MP WDR Mini PT Network Camera

Hikvision’s DS-2CD2F series of IR Mini PT network cameras is
specifically designed for indoor surveillance, such as home,
office, store or other small-sized business.
 Up to 2 megapixel high resolution
 Full HD1080p video
 Dual stream
 120dB Wide Dynamic Range
 Pan & tilt rotation
 Support on-board storage, up to 128GB
 DC12V & PoE
 Support H.264+
 Up to 10m IR range
 -S: Audio/Alarm IO
 -W: Built-in Wi-Fi

Dimensions

Specification
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0 angle of view: 109.4°(2.8mm), 90°(4mm), 53.9°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic
Range
120dB
P&T rotation Motorized Pan: -90° ~ 90°, Tilt: 0° ~ 75°
Compression
Standard
Video
Compression
H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Max Frame Rate
50Hz:Main stream:25fps(1920×1080),25fps(1280×960),25fps(1280×720)Sub stream:25fps(352×288),25fps(640×360)
60Hz: Main stream:30fps (1920×1080), 30fps(1280×960), 30fps(1280×720) Sub stream: 30fps(352×240),30fps(640×360)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Face Detection Detects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP,
802.1X, QoS, IPv6, Bonjour
General
Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous
access
Standard ONVIF (PROFILE S, PROFILE G),ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On-board
storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface 1x audio I/O *only for –S models
Reset Yes

DS-2CD2F22FWD-I (W)(S)
2MP WDR Mini PT
Network Camera

Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 25%, PoE (802.3af Class3)
Power Consumption Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
Max. 9W with pan and tilt
Material Top Cover: Plastic ; Base: Metal
IR Range Approx. 10 meters
Dimensions Φ119.93 x 87.08mm
Weight 500g (1.1lbs)
Order Models
DS-2CD2F22FWD-I, DS-2CD2F22FWD-IS, DS-2CD2F22FWD-IW, DS-2CD2F22FWD-IWS
-S: Audio/Alarm IO, -W: Built-in Wi-Fi
