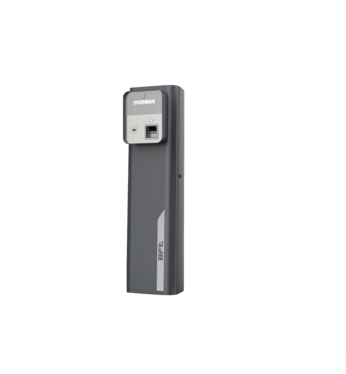

The ESPAS 30-U ULTRA station is a device for managing an exit gate from a parking area. The unit works in a wired network as a component between the other elements of the system. Equipped with ticket scanner and discount amount, proximity reader for operator and subscriber card The display and voice messages guide improve the user experience.
Basic components
Dedicated electronic board with integrated display and onboard joystick for quick programming and consultation of alarms.
Barcode scanner.
Proximity card reader for operators and subscriptions.
20 characters x 2 rows backlit LCD display
Illuminated ticket nozzle
Multilanguage audio and display messages.
Internal temperature regulated by forced ventilation and heating element.
Programmable and highly sensitive two-channels loop detector.
Automatic barrier management.
Assistance call button.
RS485 interface.
Guaranteed operation also during server offline periods.
Working mode configurable by software, control board or operator cards.
Alarms management with notification to the parking server.
Optional components
Proximity MIFARE card reader for operators and subscriptions.
Bus or IP intercom.
Motorized ticket reader.
Barcode scanner.
Single lane, two ways gate management.
Cage barriers management.
Double-height terminals availability.
Customizable cabinet colour.
CodeTitleScannerRFID card readerTicket pass managementEthernetBus intercomIP intercomMotorized ticket reader.Double height low & high vehiclePA3D140R10000ESPAS 30-U ULTRA SCN RF••• PA3D160R10000ESPAS 30-U ULTRA SCN RF T•••• PA3D140R11000ESPAS 30-U ULTRA SCN RF CIT-BUS•••• PA3D140R12000ESPAS 30-U ULTRA SCN RF CIT-IP•••• PA3D160R12000ESPAS 30-U ULTRA SCN RF CIT-IP T••••• PA3D240R10000ESPAS 30-U ULTRA PLUS RF••• PA3D240R11000ESPAS 30-U ULTRA PLUS RF CIT-BUS•••• PA3D240R12000ESPAS 30-U ULTRA PLUS RF CIT-IP•••• PA3D260R12000ESPAS 30-U ULTRA PLUS RF CIT-IP T••••• PA7D140R10000ESPAS 30-UH ULTRA SCN RF•••• PA7D140R11000ESPAS 30-UH ULTRA SCN RF CIT-BUS••••• PA7D240R12000ESPAS 30-UH ULTRA PLUS RF CIT-IP•••••
![technical design](https://www.bft-automation.com/fileadmin/_processed_/1/6/csm_366e943fed1b026e59ef6724ab150b59_60ad5a34b7.png)
Supply voltage | 230 VAC ±10%, 50Hz-60Hz |
Max power consumption | 200 W |
Idle power consumption | 70 W |
Operating temperature | -20 ÷ 50 °C |
Sizes | 1265 x 341 x 315 inch |
Gross weight | 60 kg |
Standard communication interface | RS485 |
Standard color | RAL7015 |
Material | Cabinet in 2.0 mm thick DD11 (UNI EN 10111) steel sheet; front panel in anti-wear and anti-scratch polycarbonate. |
