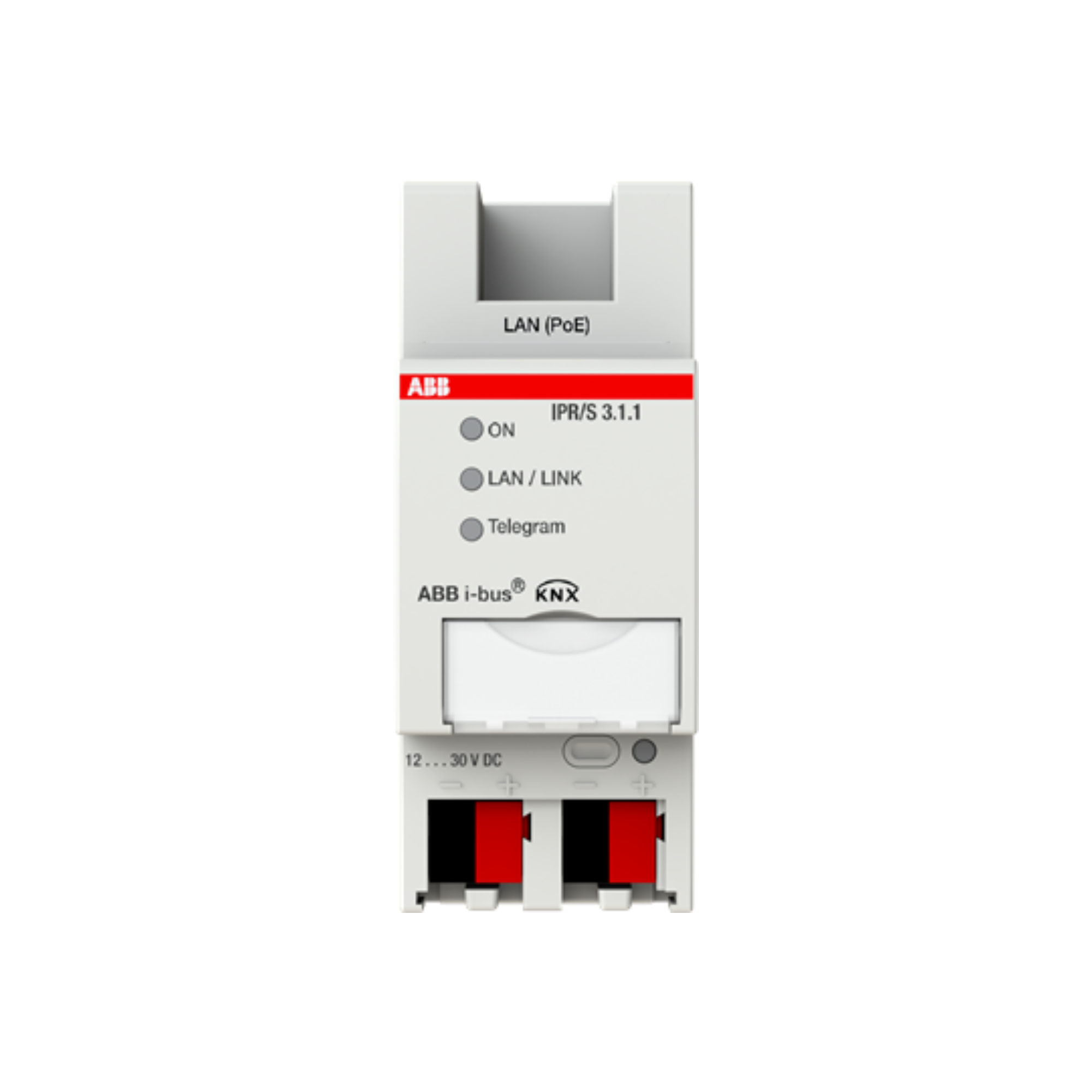

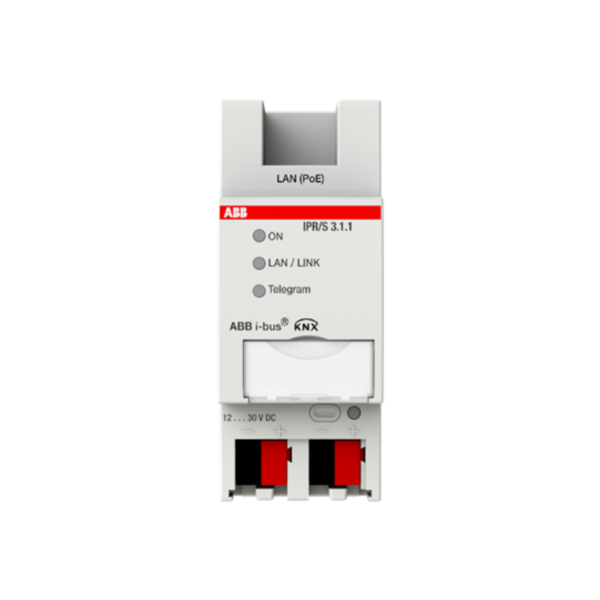

model: IPR/S3.1.1
Connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (Routing and Tunneling). It can be used as a fast line and area coupler. The full filter table for main groups 0-31 is supported. KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Tunneling Servers are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12…30 V DC or PoE (IEEE 802.3af class 1). The KNX Standard Communication (Multicast) can be switched off. In this case, up to 10 IPR/S 3.1.1 can communicate using unicast communication
Product Characteristics
KNXnet/IP Routing
5 KNXnet/IP Tunnelling connections
10 Unicast Connections
support of long telegrams
power supply via KNX TP
Power over Ethernet
low power consumption
various routing filter for group and individual telegrams
various ACK and repetition settings
Firmware update via i-bus Tool
IP discovery via i-bus Tool

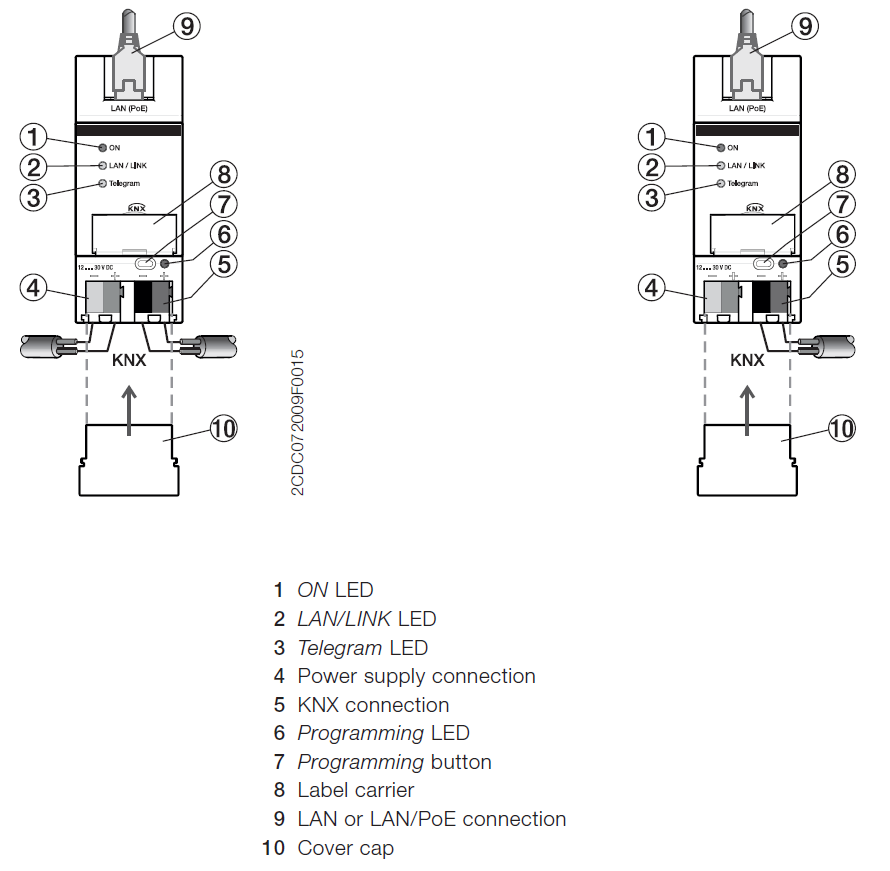

multi colour LEDs show status information
