model: MM1-50-111-WH

mode: MM1-50-111-WH-BOX (Surface Mounting Box)

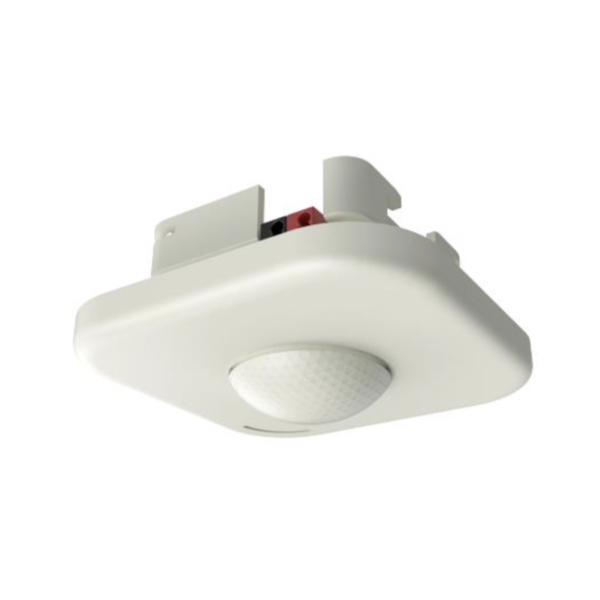

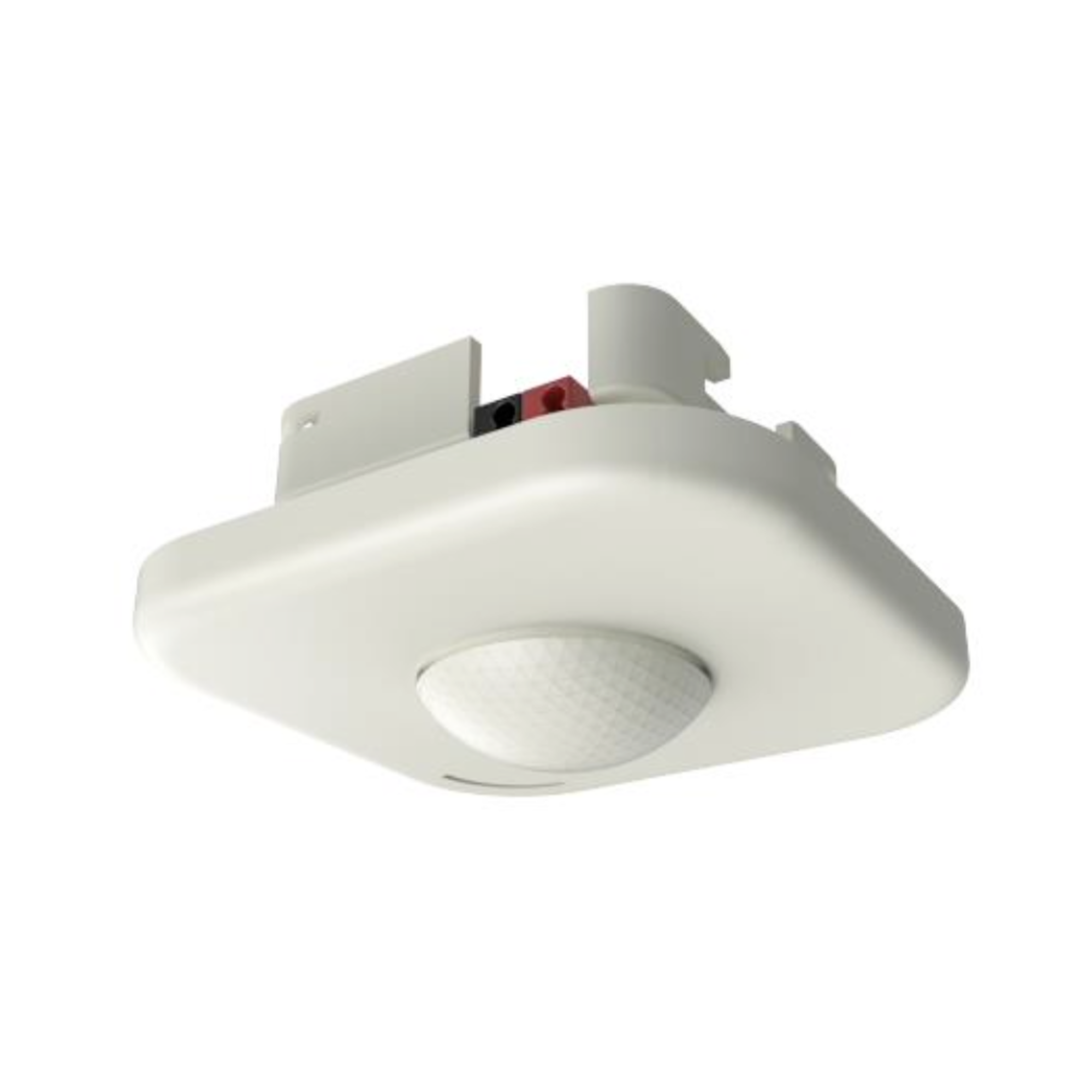

The device is a presence and movement detector designed for indoor use.

It is used to switch and regulate the brightness level in dependence of movement/presence in lighting systems and/or HVAC systems.

It is supplied directly from the KNX line without the need of any external power supply. It is suitable for installing flush and surface mounting (with the surface mounting box).

Constant brigthness control can be done. It will transfer the data collected by the temperature and humidity sensors to the KNX line.

Product Characteristics

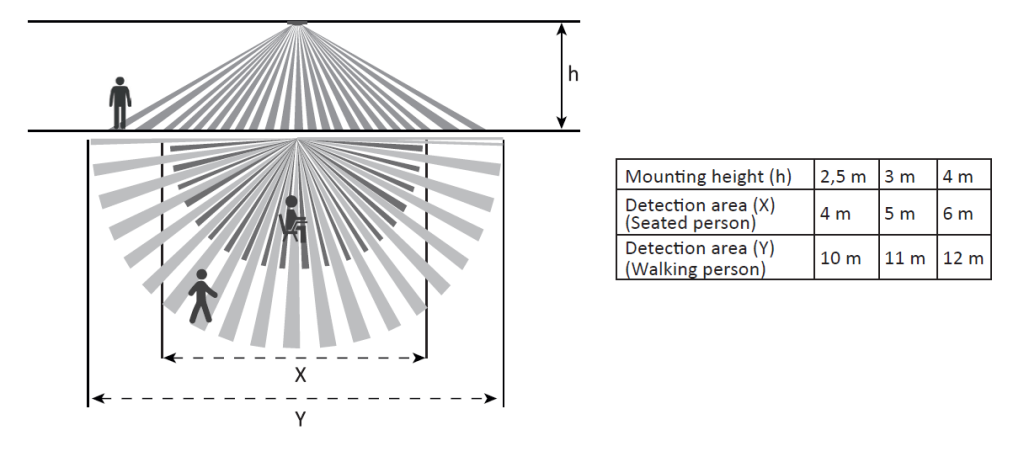

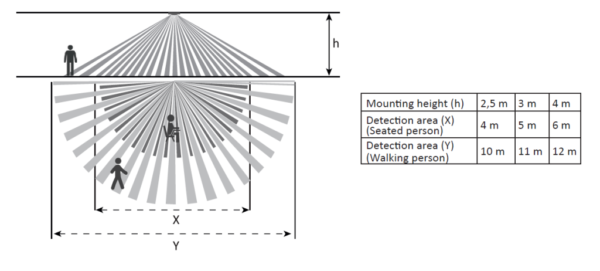

10 meter detection area for 2.5m height
12 meter detection area for 4m height
PIR detection technology
Brightness sensor (10…1000Lux)
Constant brightness control with internal brightness sensor
Temperature and Humidity Sensor
Hvac system control outputs

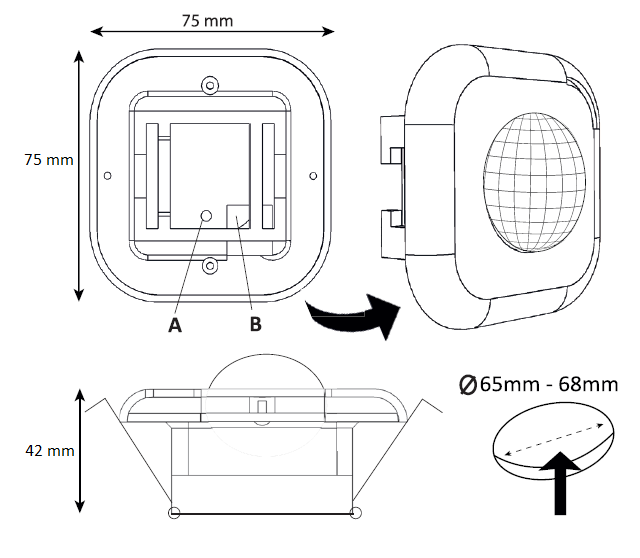

Easy mounting flush mounting desing
With mounting box, devce can easy mount to Surface places. Surface Mounting Box Code : MM1-50-111-WH-BOX
Conformity with the CE
