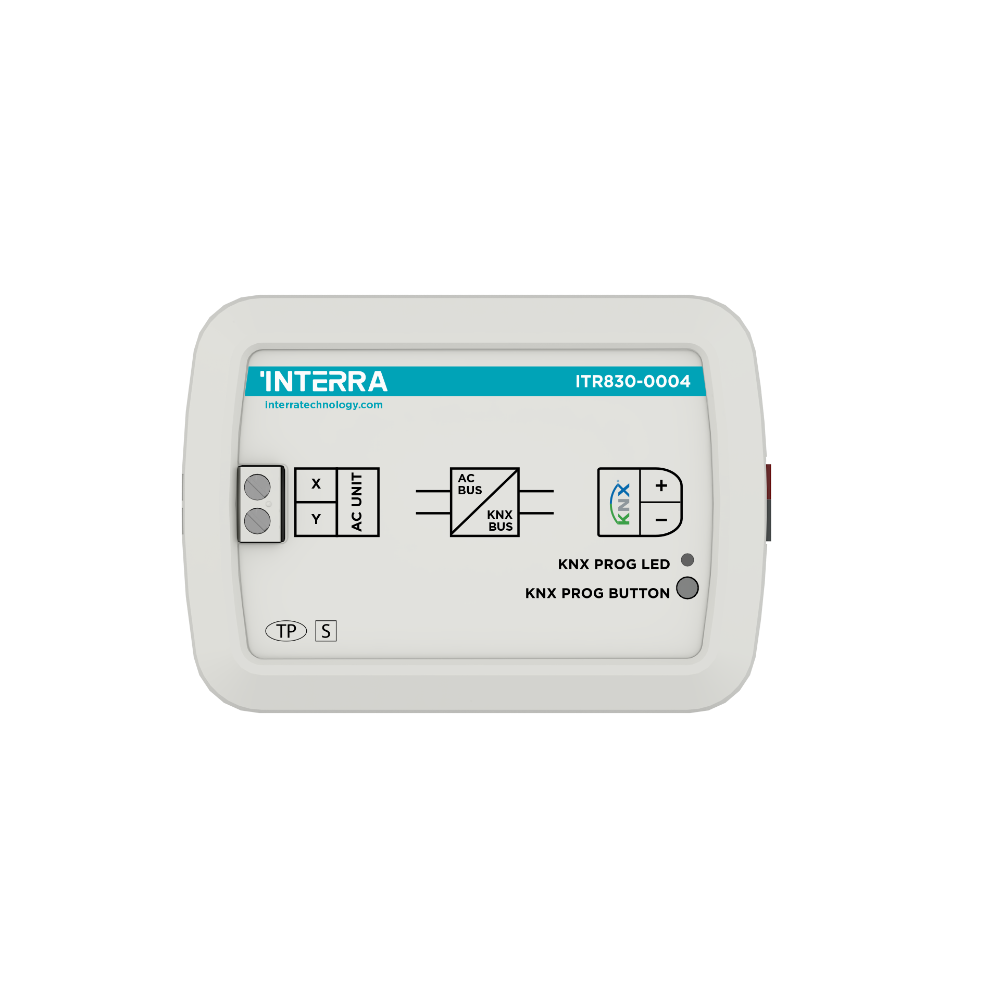

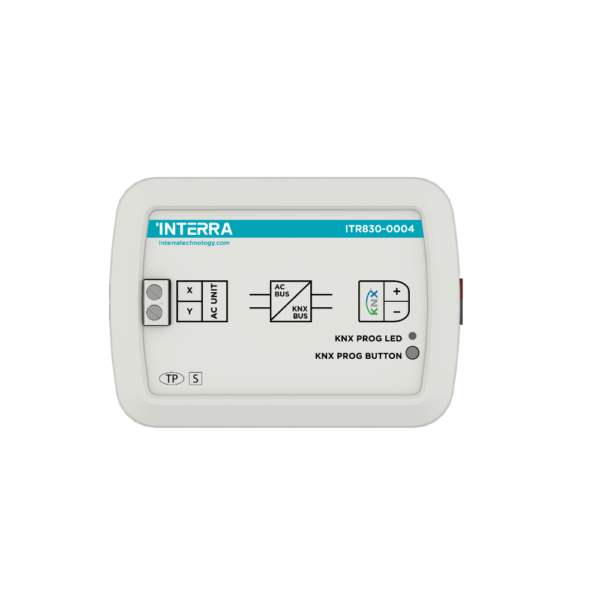

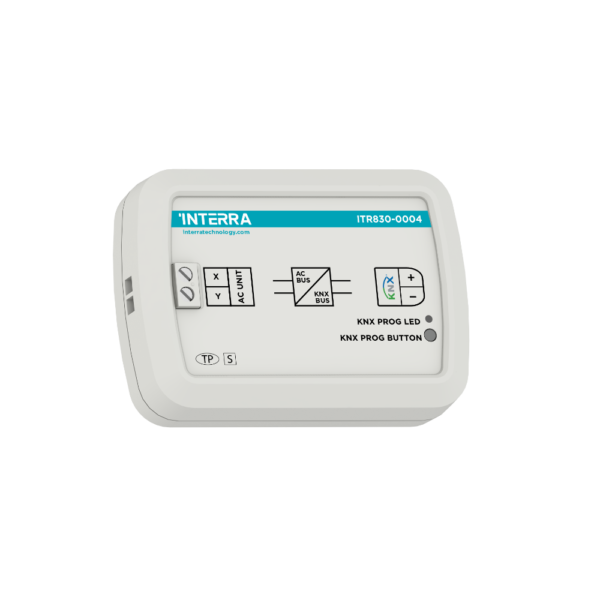

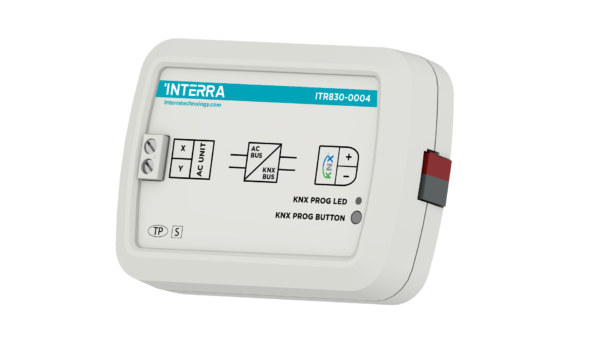

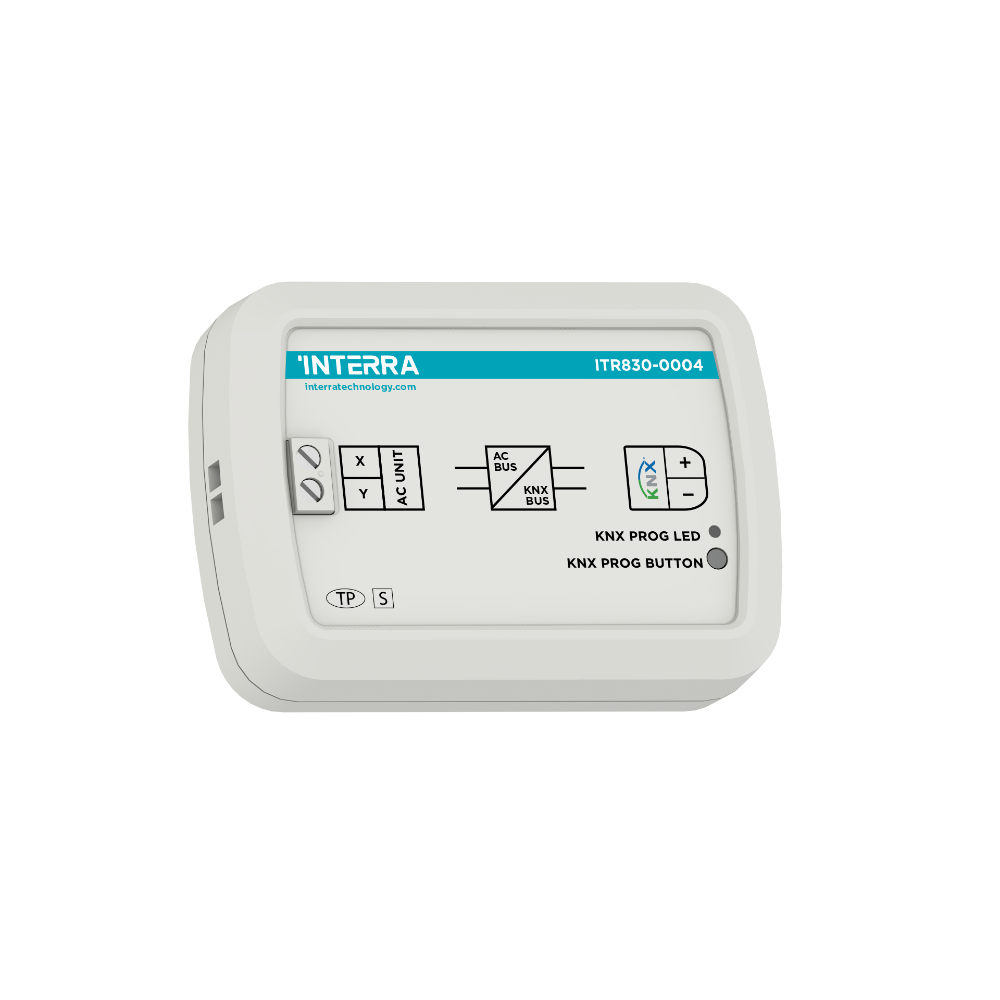

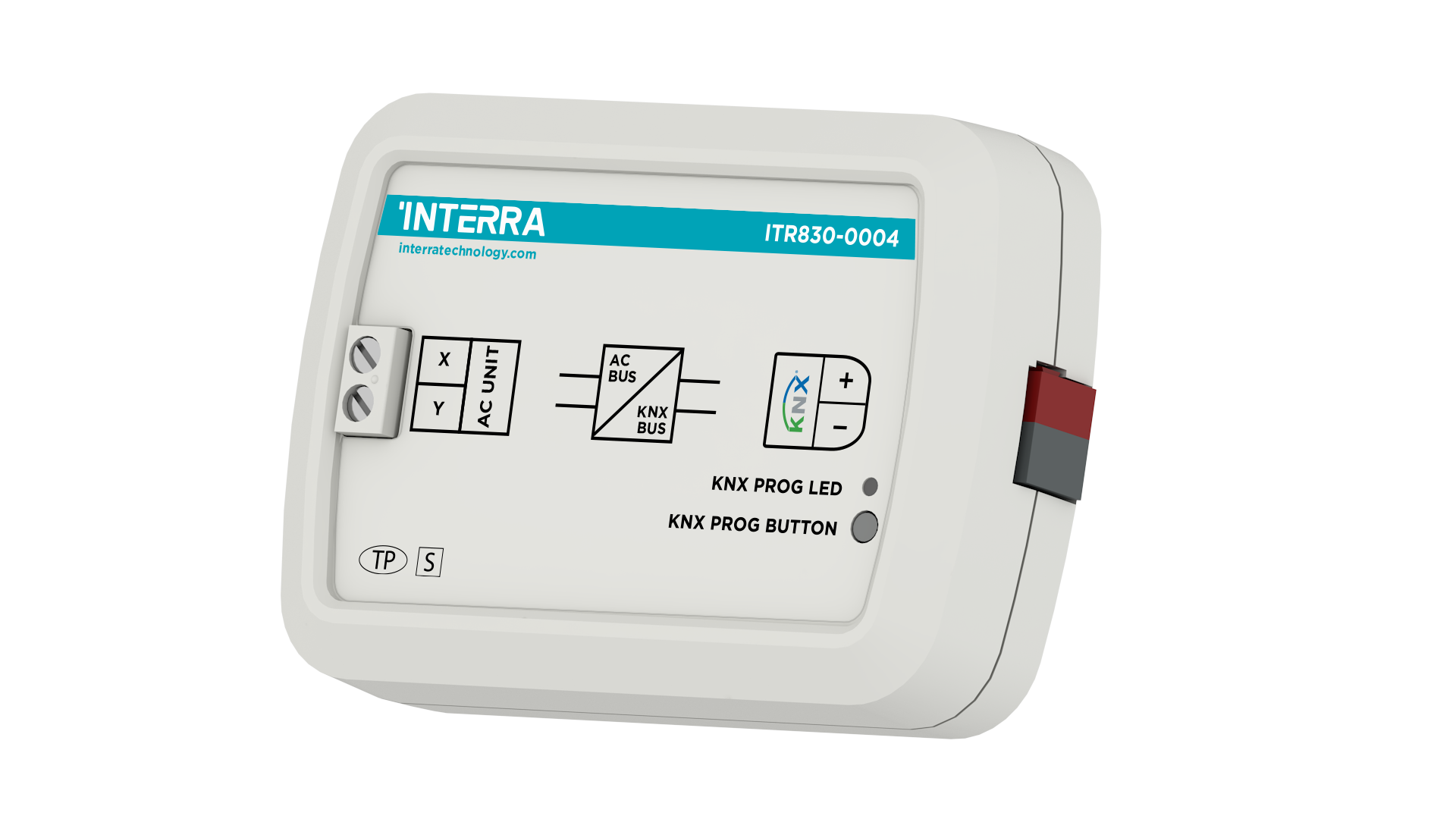

ITR830-0004 is an air conditioner gateway used for monitoring and controlling all the functioning parameters of Mitsubishi Heavy Industries air conditioners via the KNX bus line. Mitsubishi Heavy Industries AC – KNX Gateway is compatible with the RAC* series, FD series, KX6, and KXR6 (VRF) series types categorized in the compatibility list sold by Mitsubishi Heavy Industries. Mitsubishi Heavy Industries AC – KNX Gateway has an easy installation feature and can be installed inside the own AC indoor unit or a proper location away from the air conditioner, it connects one side directly to the electronic circuit of the AC indoor unit and in the other side directly to the KNX bus.

Note: Existing commands may vary according to the indoor unit model. Please refer to relevant technical documents.

Main Functions:

ITR830-0004 device provides complete bidirectional integration of FD & VRF type air conditioners with KNX bus.

• Includes 4 logical advanced parameters, each logical parameter has up to 4 inputs and can be configured as AND, OR & XOR.

• Includes 8 advanced converter parameters, each converter has four operations math calculations according to the input type.

• Logic and converter parameters can be used for energy savings, configurable scenes, temperature limits, etc.

• The Mitsubishi Heavy Industries air conditioner unit provides error notifications for errors that may occur in exceptional cases.
