NICE L FAB Underground Swing Gate Motor Kit in Dubai UAE.
Nice L-Fab Underground Gate Opener Kit 1 (230v, 4m)
230v Nice Underground Gate Opener Kit for gates up to 650KG and 4m in length.
Features:

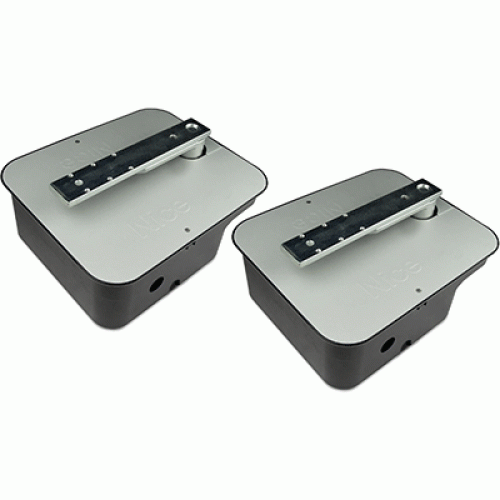

Foundation boxes with mechanical stop on opening and cataphoresis paint finish
Choice of release from inside or outside by a two key or lever operated release mechanism
Standard Opening 110°.
Nice L-FAB BD underground automation kit for swing gates with a gate width of up to 8m, for a leaf length of up to 4m
New underground actuators for stylish and discreet installations.
Strong and durable, ideal for very large gates with a leaf length of up to 4 m and a weight of up to 650 kg.
Actuator features:
Maximum freedom of choice – unlocking from the inside and from the outside, two models,
unlocking by key or lever freely combined and easily operated with one hand
Easy to use: standard opening angle max 110°, optionally even 180° with MEA1
Sealed, protection class IP67.
Mindy A60 control panel:
for two 230V actuators
removable plugs for connections
electronic force adjustment
two photo inputs with separate functions
electric lock operation
partial gate opening function (wicket function)
independently adjustable working time of two actuators smooth release
adjustment of the smooth closing of the gate soft start
phototest – automatic verification of the correct operation of photocells before each gate movement
Technical data:
Manufacturer: Nice
Power supply: 230V
Current: 1.5A
Input power: 340W
Rotation speed: 0.8 rpm
Torque: 500Nm
Work intensity: 20 cycles/h
Degree of protection: IP67
Operating temperature: -20°C to +50°C
Dimensions: 400x325x150mm
Weight: 14.3 kg
NICE L FAB Kit Includes:
2 x BM4000 230v Swing Gate Motors.
1 x EPM Photocells (Pair).
2 x FLO2RE 433.92 Mhz, 2 Channel Transmitters.
2 x BMBOX4 Foundation Boxes
1 x A60 Control Unit
1 x OXI 4 Channel Receiver
1 x Push Button.
2 x Fixing Brackets.
