NICE M FAB Swing Gate Motor Kit in Dubai UAE.

NICE M FAB KIT is a kit for the automation of swing gates from Nice,
having in its component 2 extremely reliable irreversible gearmotors with ground mounting.
This gearmotor is an ultra-compact one, intended for
swing gates with a maximum leaf length of up to 3 meters and a weight of up to 400 Kg.
It has a maximum torque of 300 Nm, with a duty cycle of 30%.
It also has an important degree of protection against bad weather,
thanks to the IP67 standard. The power supply will be at 230V,
and the optimal operating temperature is between -20°C and +55°C.

Gearmotor Nice MFAB3000:
Use: swing gates
Maximum leaf length: 3 m
Maximum weight supported: 400 Kg
Duty cycle: 30%
Rotations per minute: 1.14 RPM
Torque: 300 Nm
Degree of protection: IP67
Installation: buried
Capacitor: 10 µF
Power: 250 W
Absorbed current: 1.2 A
Power supply: 230V
Operating temperature: -20°C – +50°C
Thermal protection: 140°C
Dimensions: 390 x 322 x 194.5 mm
Weight: 11 Kg.

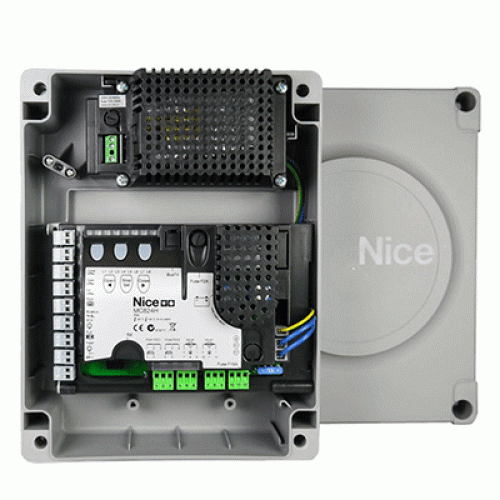

Nice MC800 control unit:
Use: swing gate automation
Maximum motor power: 900 W
Connection: BlueBus (2 wires)
Obstacle detection: Yes
Operating modes: 2 (semi-automatic, automatic)
Operating system: Opera
TP pause time: 5-180 s
Courtesy light time TCOR: 0:250 s
TPRE pre-flashing light time: 0:10 s
Anti-crushing sensitivity: min:max
Compatibility: Toona TO4005, TO4006, TO4015,
TO4605, TO5015, TO5016, TO5605, Hyppo HY7100, HY7005,
Wingo WG4000, WG4010, WG5000, Metro MFAB3000, MFAB3000L,
Motor current: 15 A
Maximum flashing light power: 120/230 V, 21 W
Maximum power of the gate open indicator AC: 24 V, 4 W
Maximum electric lock power: 12 Vac, 15 VA
Degree of protection: IP54
Power supply: 120/230V, 50/60 Hz
Operating temperature: -20°C – +50°C
Dimensions: 230 x 120 x 300 mm
Weight: 4.1 Kg.

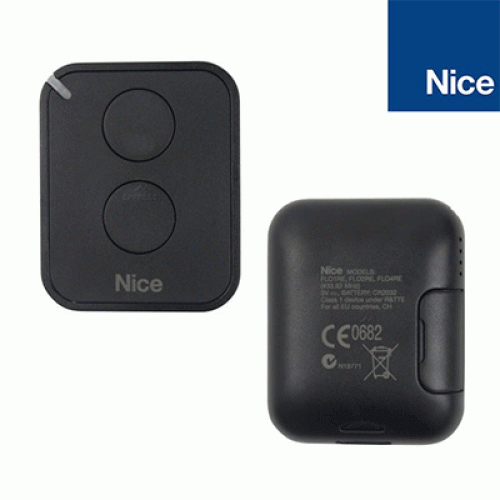

Nice FLO2RE 2-channel remote control:
Frequency: 433.92 MHz
Number of channels: 2
Operating distance: 150/200 m with connected antenna in open spaces
Coding: 52 bit (FLOWER)
Power supply: 3 Vdc, CR2032
Case protection degree: IP30
Dimensions: 58 x 86 x 22 mm
Compatibility: Flor and On
Weight: 55 g.

Nice OXIBD remote control receiver:
Number of channels: 4
Frequency: 433.92 MHz
Coding: BD, O-Code, Flor, TTS, Flo, Smilo
Sensitivity: 108 dBm
Input impedance: 50 Ω
Transmitter memory capacity: 1024 – unidirectional, 750 – bidirectional
Absorbed current: 50 mA
Power supply: 5V DC
Operating temperature: -20°C – +55°C
Dimensions: 49.5 x 41.9 x 18 mm
Weight: 22 g.

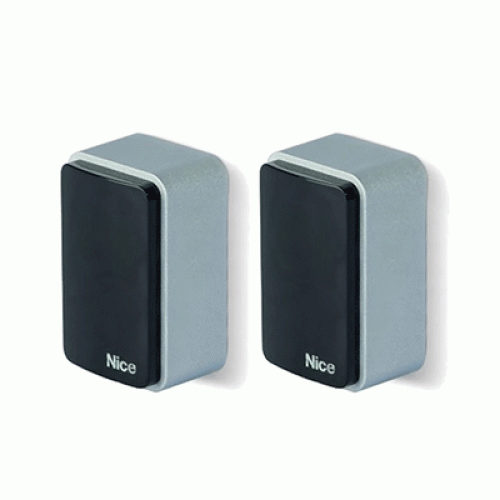

Pair of Nice EPM outdoor photocells:
Technology: optical interpolation between TX and RX units.
Power supply: 24 Vac / Vdc
Consumption: 55 mA (TX + RX)
TX action angle: 20°
RX action angle: 20°
Autonomy: over 600,000 shareholders
Response time: 30 ms
Actuation distance: 20 m
Degree of protection: IP 44
Operating temperature: -20°C – +50°C
Dimensions: 70 x 70 x 30 mm / 50 x 80 x 28.5 mm.

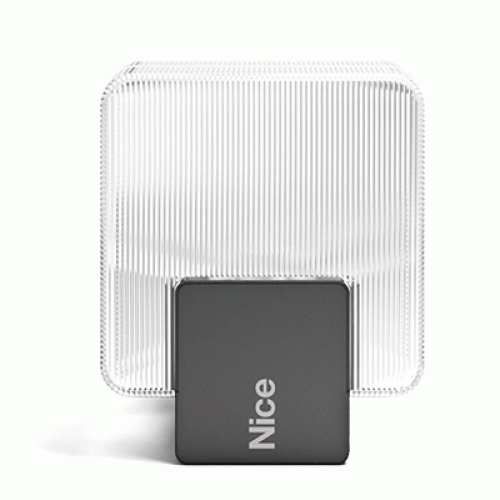

Nice ELAC signaling lamp:
Power supply: 90 – 240V
Frequency: 433.92 MHz (built-in antenna)
Built-in chopper circuit
Degree of protection: IP 44
Dimensions: 132 x 72 x 155 mm.

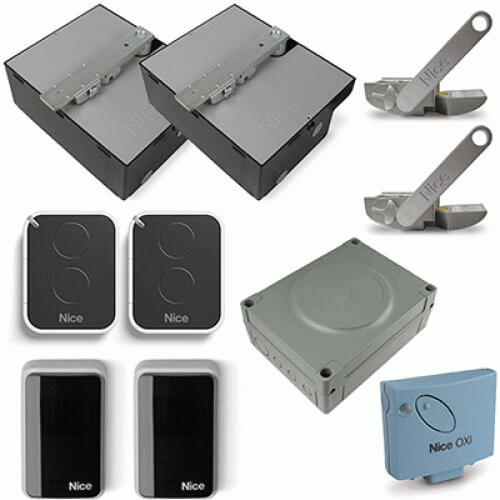

The package contains:
2x Gearmotor for buried external mounting Nice MFAB3000.
2x Nice MECFR00 galvanized steel motor housing
2x Nice MEA3 Lever Unlocker
2x Remote control 433.92 MHz with 2 channels Nice FLO2RE
1x Nice OXIBD remote control receiver
1x Nice MC800 control unit
1x Pair of Nice EPM outdoor photocells
1x Nice ELAC signalling lamp
1 x Push Button.
