Gate leaves up to 1,8 m

Solution for fitting on posts where little space is available

MAIN FEATURES
For installations on posts with a minimum width of 8 cm.
Encoder-based movement control.
Reversible or irreversible gearmotor

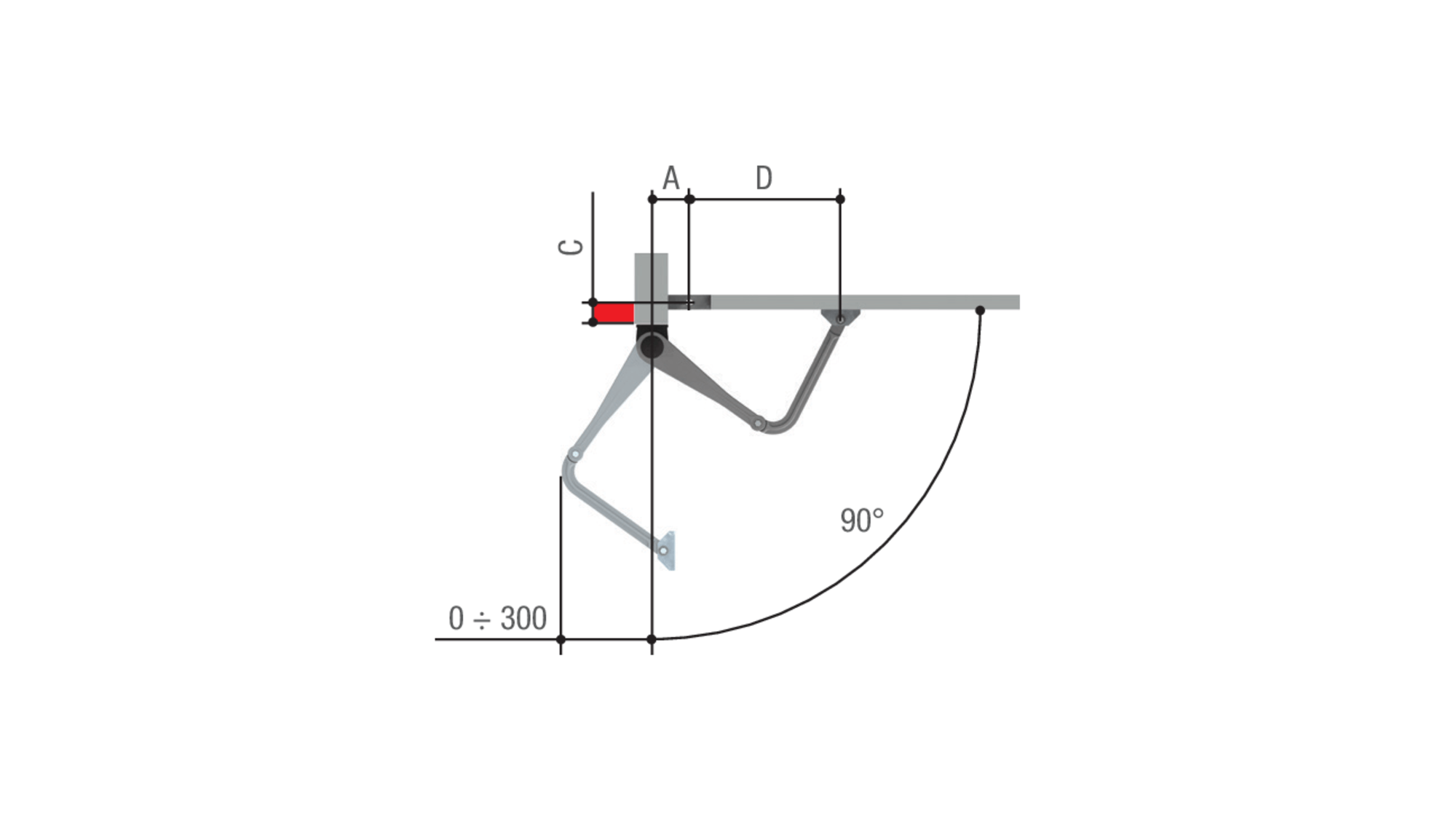

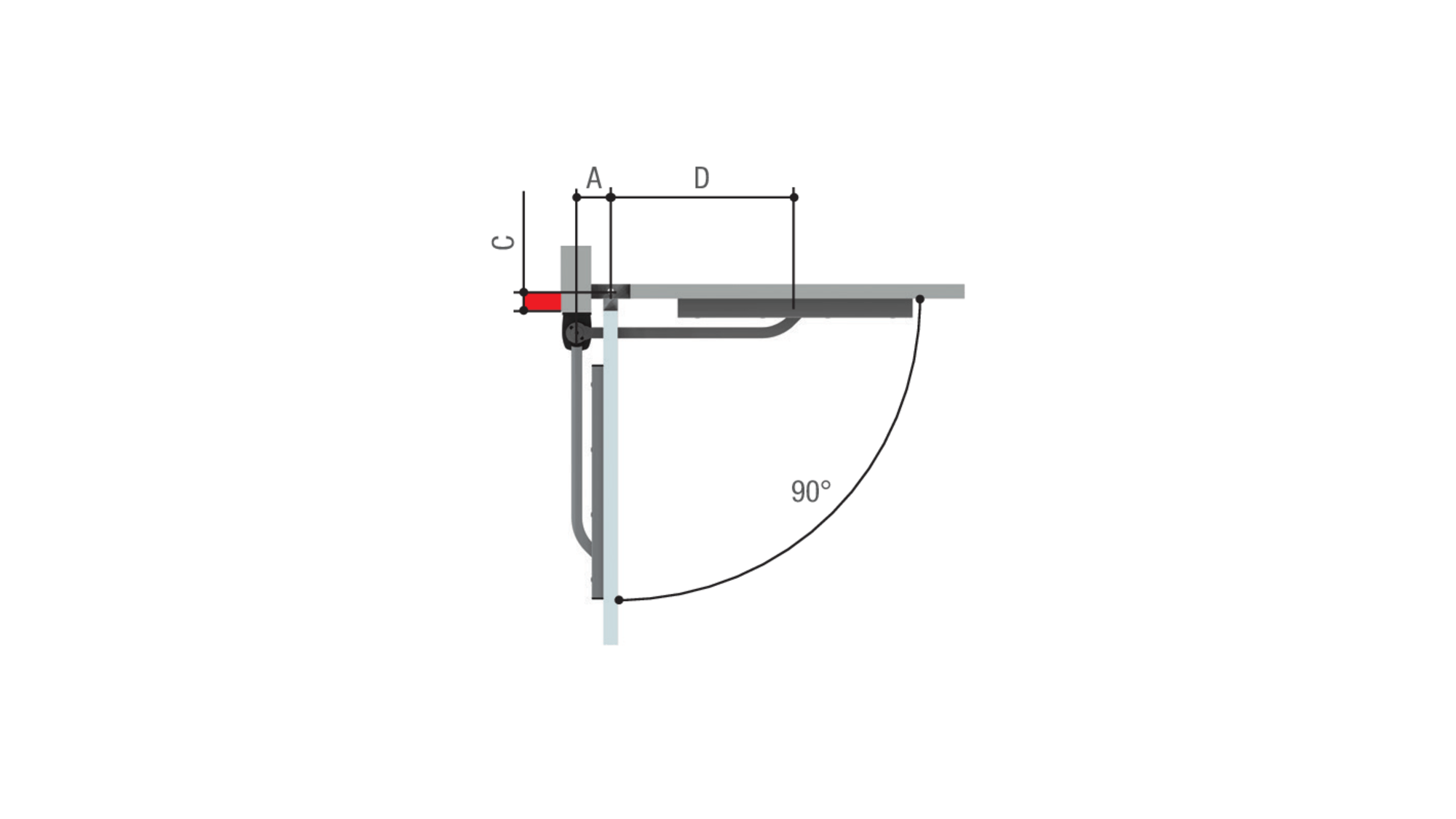

They can also be installed close to a wall with the STYLO-BD accessory.
Ready for operation in case of power outage.
Custom-key release system.

Solution for fitting on posts where little space is available

SRTLO-ME
Max. length of leaf (m)
1,8
1,2
0,8
Max. weight of leaf (kg)
100
125
150
Max. leaf opening (°)
120 (with STYLO-BS arm) – 135 (with STYLO-BD arm)

STYLO-RME
Max. length of leaf (m)
1,8
1,2
0,8
Max. weight of leaf (kg)
100
125
150
Max. leaf opening (°)
