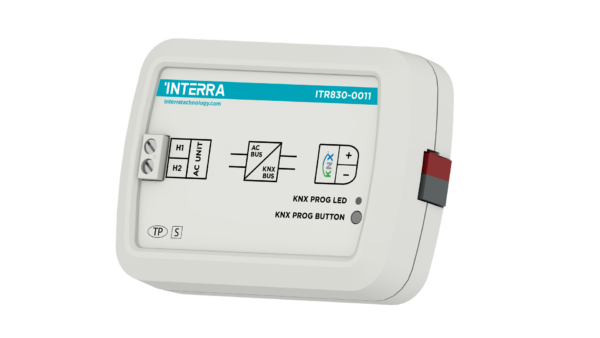

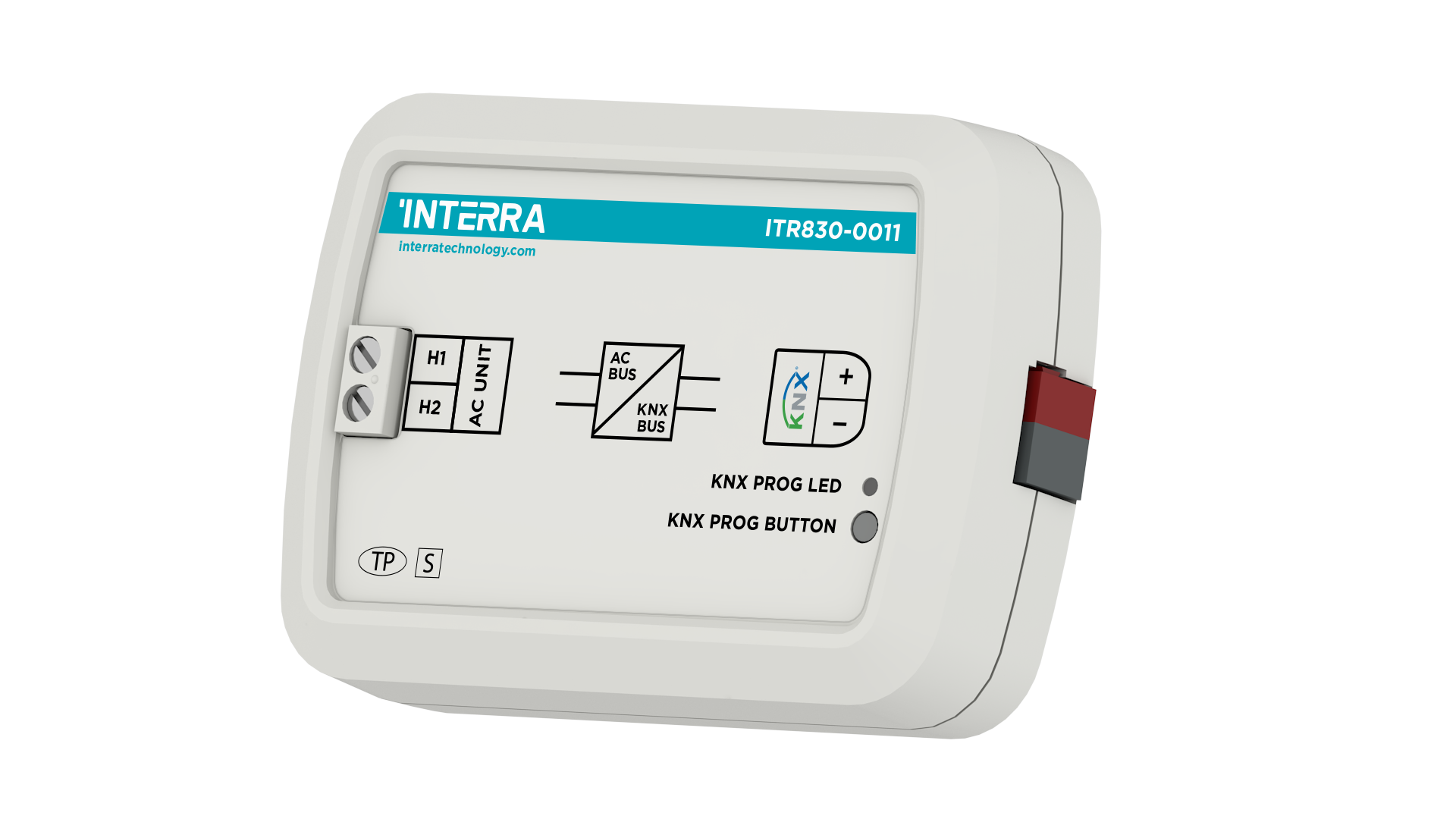

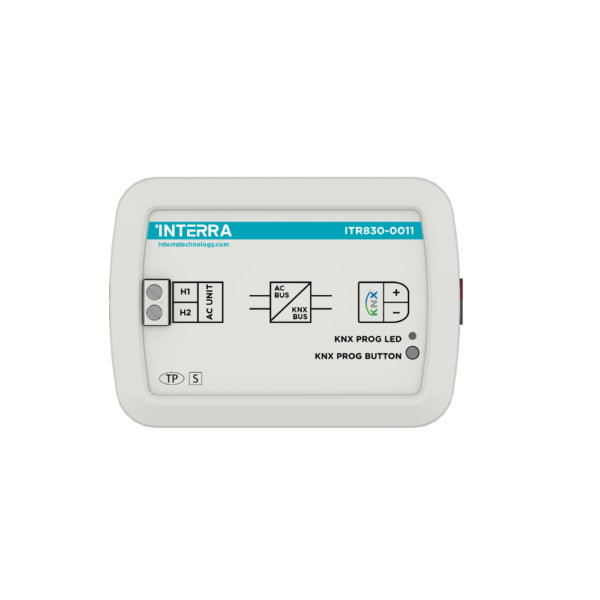

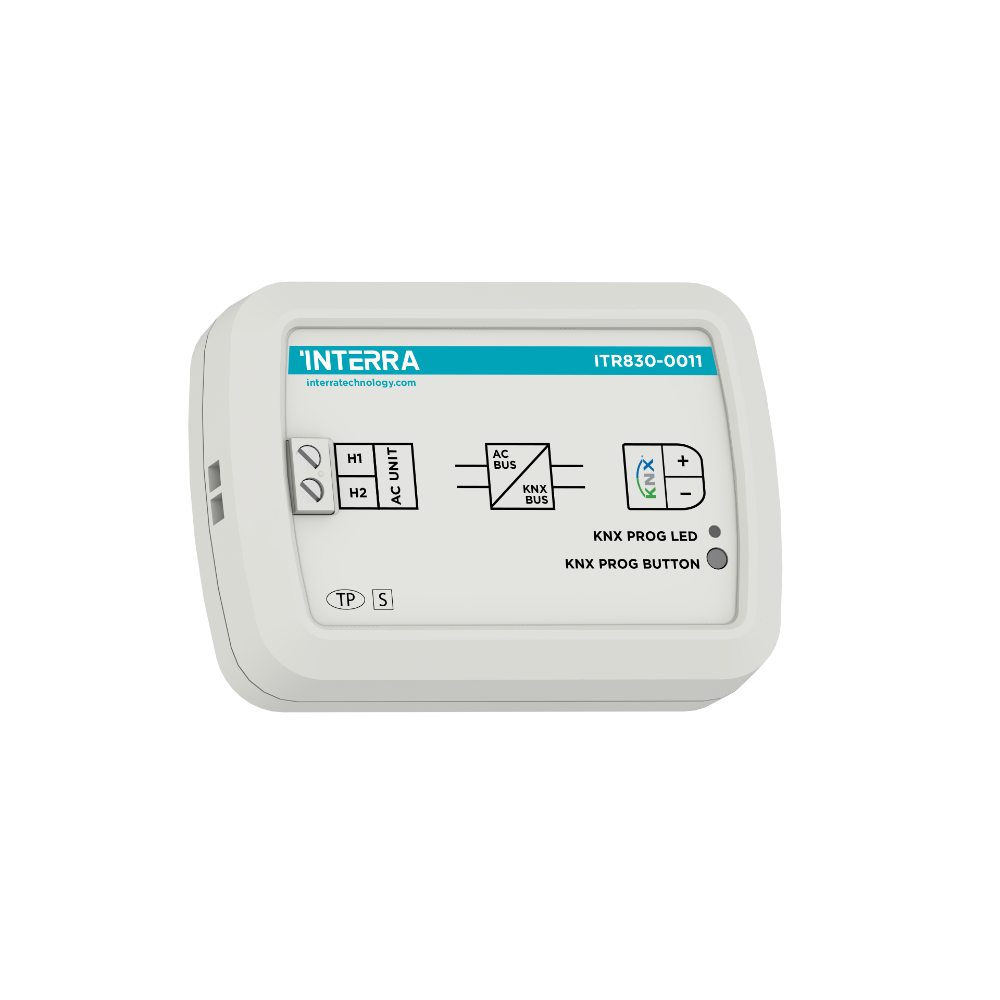

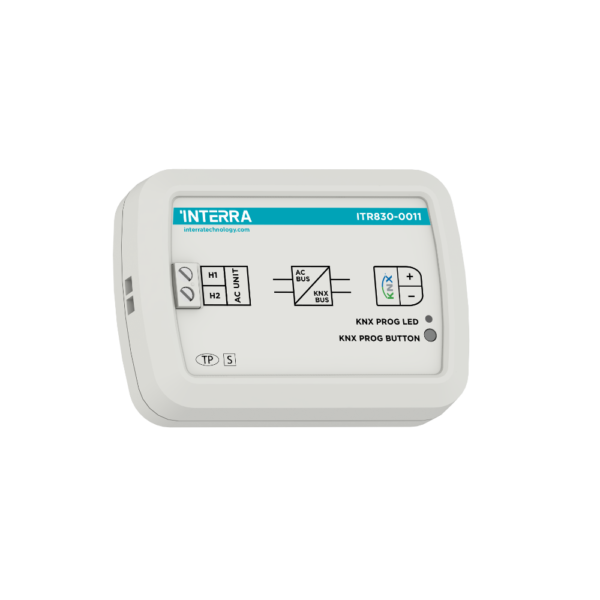

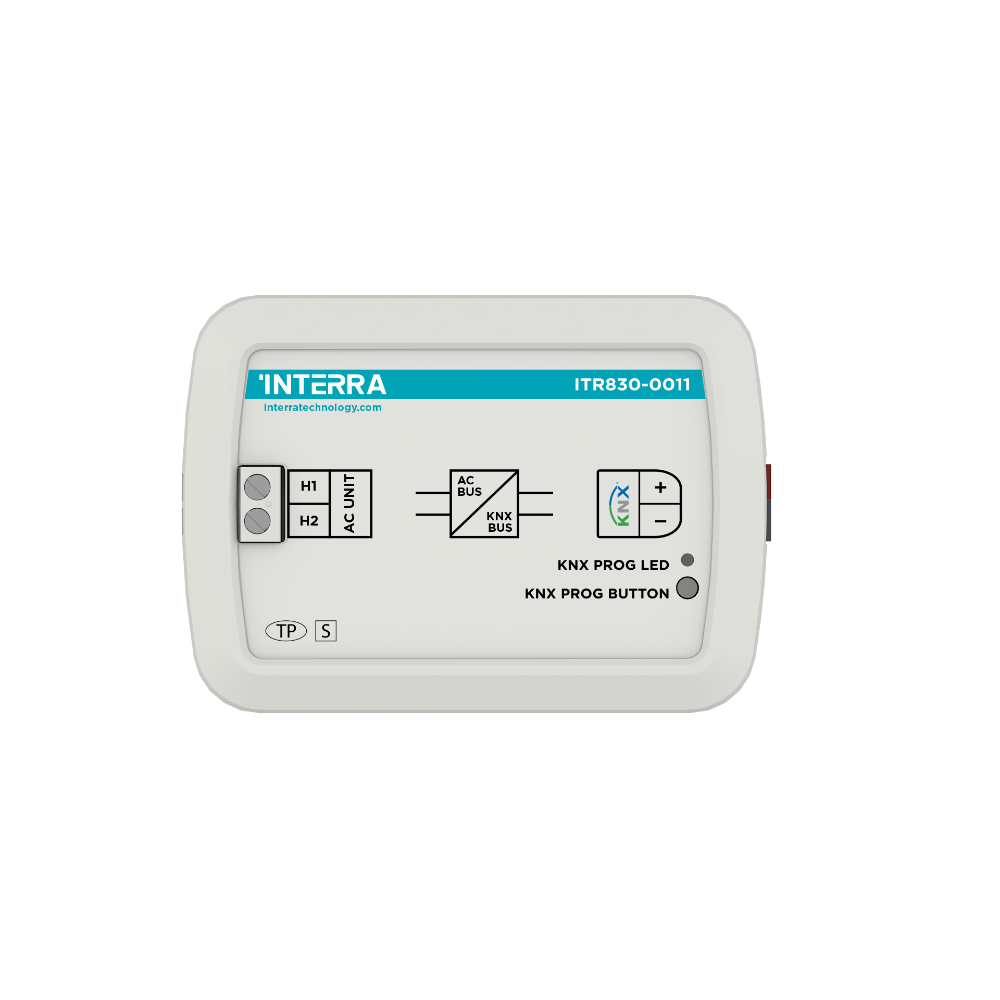

ITR830-0014 is an air conditioning interface used to monitor and control all function parameters of Toshiba air conditioners via KNX line. The Toshiba VRF AC – KNX interface is compatible with models sold by Interra and classified as VRF in the compatibility list. Thanks to its easy installation feature, the Toshiba VRF AC – KNX interface can be installed on the indoor unit of the air conditioner to be installed or in a suitable location away from the air conditioner. Installation is made by connecting one side of the Toshiba VRF AC – KNX interface directly to the electronic circuit of the AC indoor unit and the other side directly to the KNX bus.
Main Functions:
• ITR830-0014 interface provides bi-directional integration of Toshiba air conditioners with the KNX bus line.
• ITR830-0014 includes 4 logical advanced parameters, each logical parameter can hold up to 4 input logic conditions and can be configured as OR, AND & EXCLUSIVE OR logical operator.
• ITR830-0014 includes 8 advanced converter parameters and each converter can perform four process calculations depending on the input type.
• Logical and converter parameters, energy saving, configurable scenarios, temperature limits, etc. Can be used for.
• Toshiba AC unit contains error notifications for errors that may occur in exceptional cases
