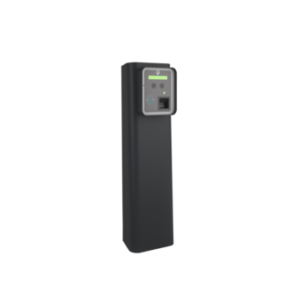

TUVA integrated UHF antenna, 6m range pole mounted. Black/white list onboard Easy to use and easy to install Very high performances Robust and weatherproof design, IP 66 Extended read-range, up to 6m (20ft) Identification by means of white list / black list
Aura Tuva is a medium range UHF passive tag reading system that can be integrated in a parking system. The Tuva antenna, installed near the entry and exit posts, allows motorists with special adhesive tags on their windscreens to enter and exit the car park quickly, without having to show anything at the post.
![technical design](https://www.bft-automation.com/fileadmin/_processed_/0/d/csm_28a72f1348e41e723d1c3f1bedb58c9b_c58a70c474.png)
Operating frequencies (US) | 902.75 ÷ 925.25 MHz |
Sizes | 300x300x60 inch |
Interconnectivity | no |
Operating frequencies (EU) | 865.6 ÷ 867.6 MHz |
Reading distance | Up to 6 ft |
Weight | 2.3 kg |
Power(EU) | (e.r.p.) 2 W |
Power (US) | (e.i.r.p.) 4 W |
Interface | RS-232. RS-485. TCP/IP, Wiegand |
Supply voltage | 12 – 24 Vdc |
Power consumption | 10:12 W |
Operating temperature | -40 ÷ 60 °C |
Number of digital inputs | 3 isolated inputs |
Number of digital outputs | 3 isolated outputs shared |
Number of relay outputs | 1 relay output, 60VDC, 2A |
Application type | High traffic flow |
