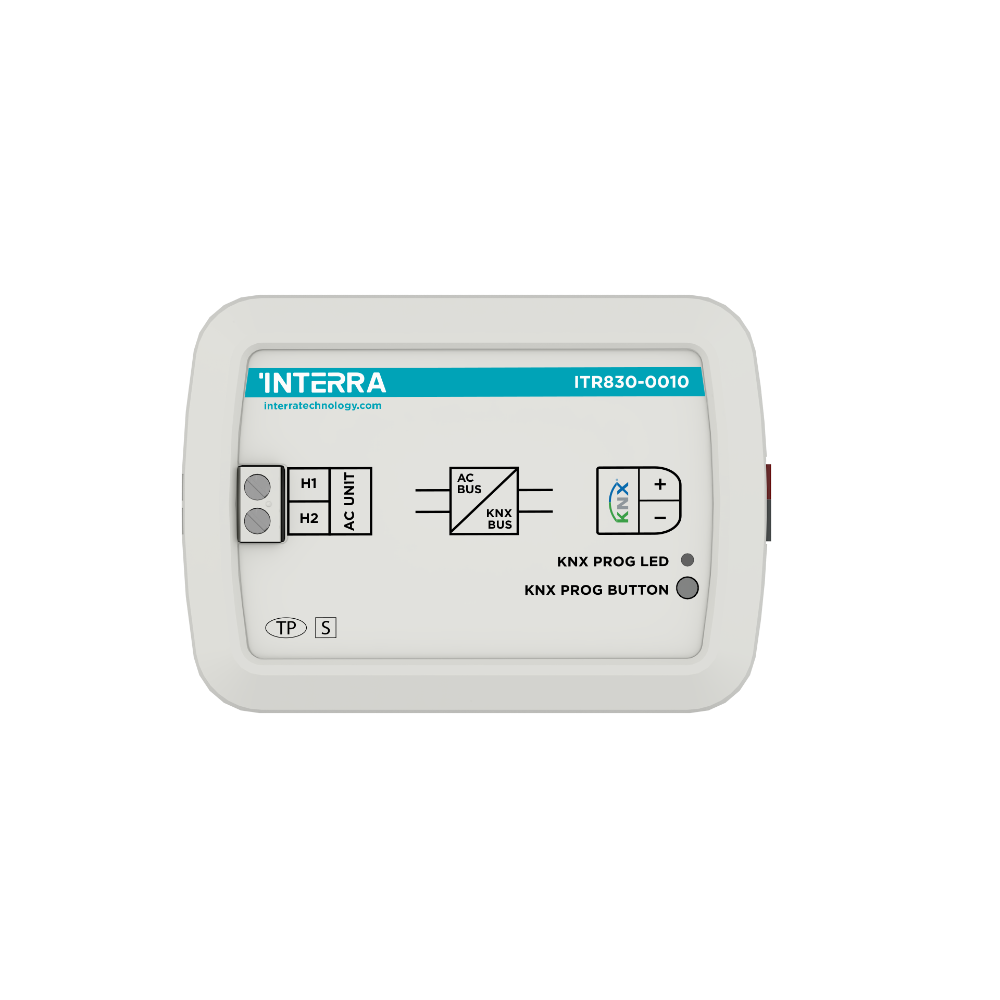

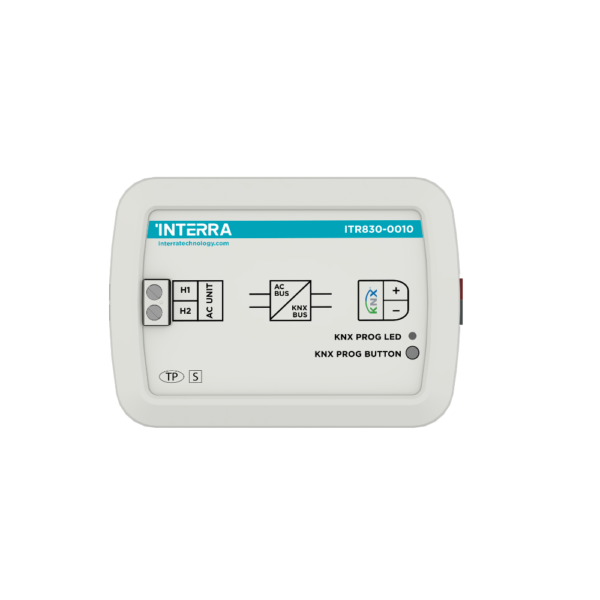

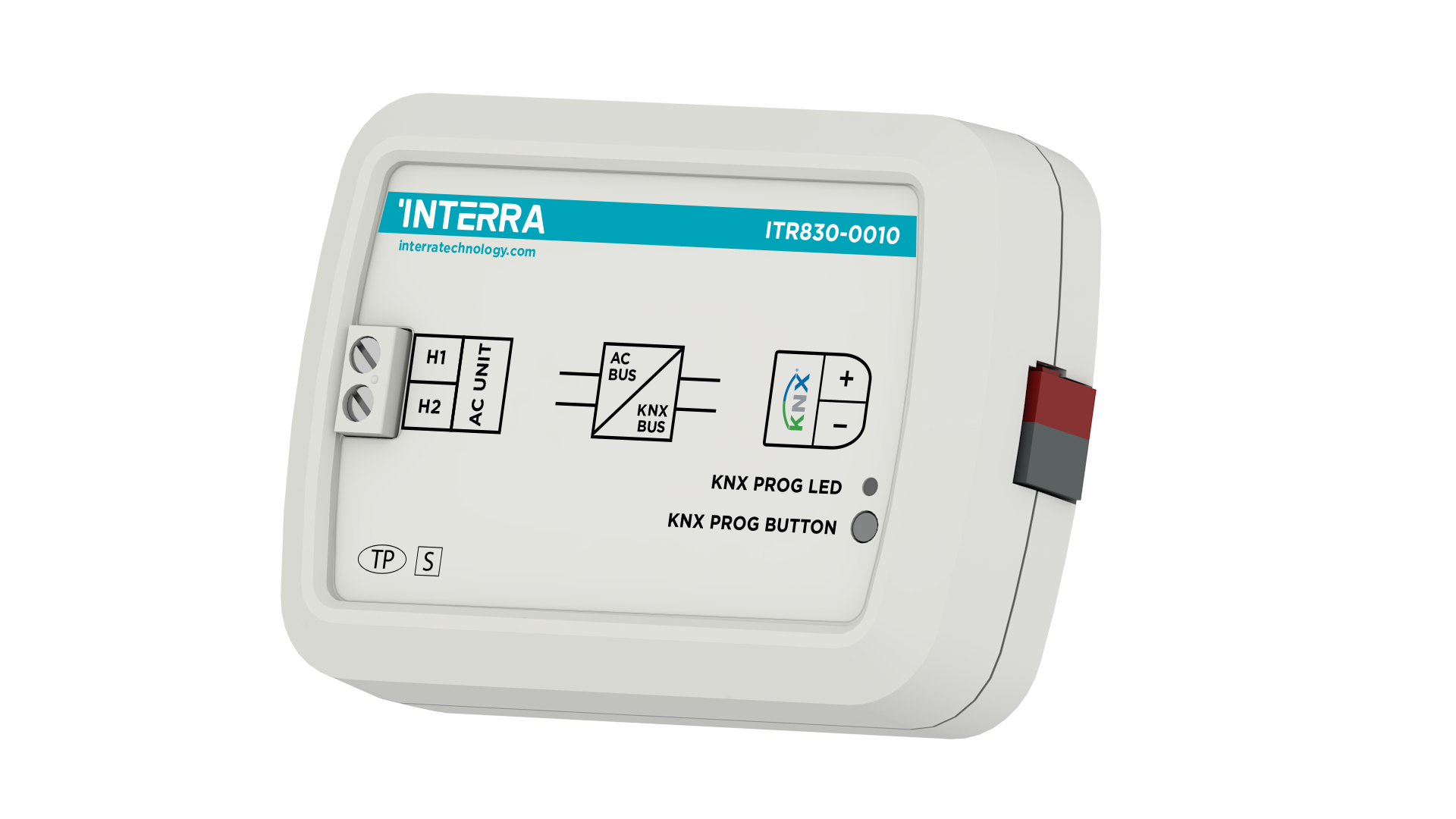

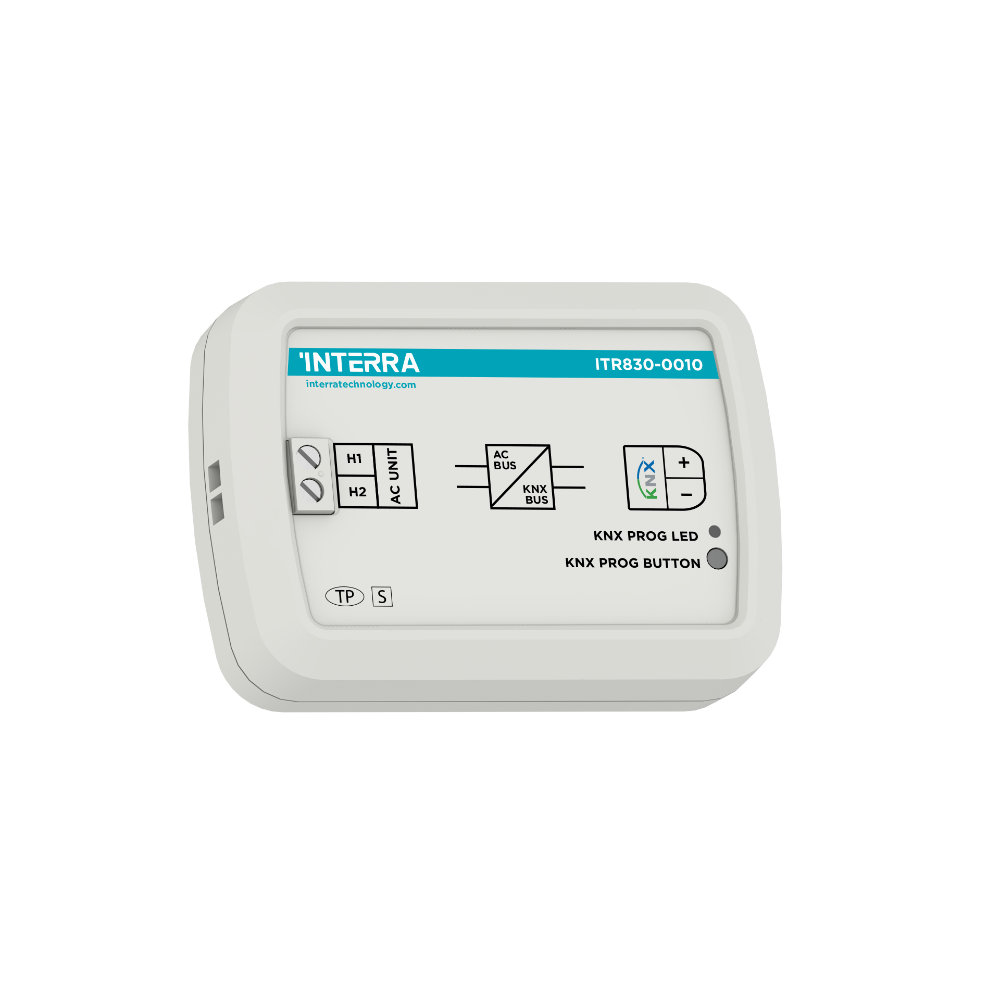

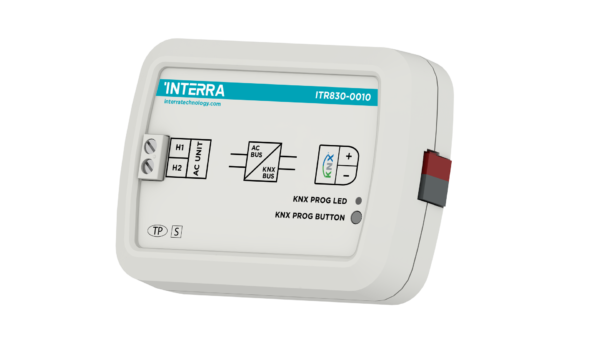

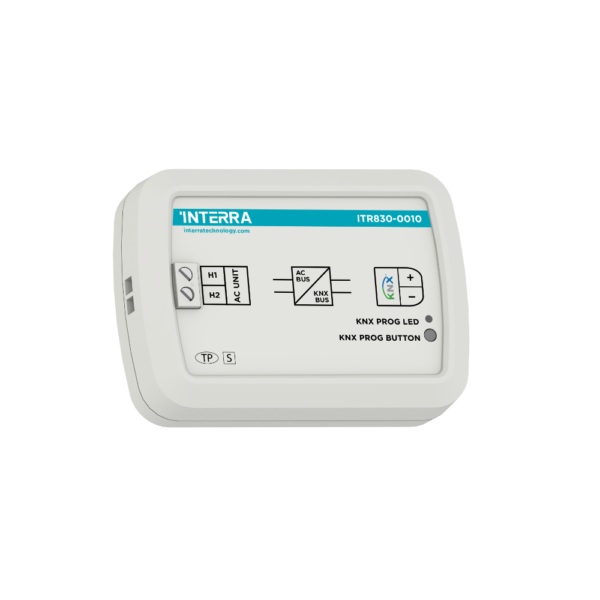

ITR830-0010 is an air conditioning interface used to monitor and control all function parameters of Valliant air conditioners via KNX line. Valliant VRV AC – KNX interface is compatible with models sold by Valliant and classified as VRV in the compatibility list. Thanks to its easy installation feature, Vaillant VRV AC – KNX interface can be installed on the indoor unit of the air conditioner to be installed or in a suitable location away from the air conditioner. Installation is made by connecting one side of the Vaillant VRV AC – KNX interface directly to the electronic circuit of the AC indoor unit and the other side directly to the KNX bus.

Main Functions:

• ITR830-0010 device provides bi-directional integration of Vaillant VRV air conditioners with KNX bus line.

• Contains 4 logical advanced parameters, each logical parameter can hold up to 4 input logic conditions and can be configured as OR, AND & EXCLUSIVE OR logical operators.

• It contains 8 advanced converter parameters and each converter can perform four process calculations depending on the input type.

• Logical and converter parameters can be used for energy saving, configurable scenarios, temperature limits, etc.

• Vaillant AC – KNX unit contains error notifications for errors that may occur in exceptional cases.
