REF: ZS55IEUA2US
ZS55 is Zennio’s 55 x 55 mm switches and sockets series. Timeless and elegant, flush fitting with the frame for a perfect combination with Flat 55 and Tecla 55 capacitive touch switches.
Technical features
- Power handling: 16 A / 250 V ~
- Maximum cable section: 2.5 mm2
- Compatible plugs: European plugs (type C and F) and American plugs (type A and B)
- Connection method: screw terminals
- Fixing mechanism: screws and optional claws
- Childproof safety shutter
- USB type C + A – 2.4 A – 5V (12W)
References

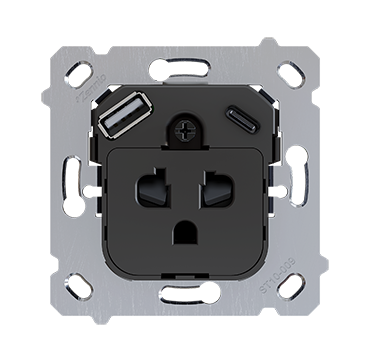

- ZS55 – Euro-American socket insert with USB C and A – screw terminals (without cover) – Ref. ZS55IEUA2US

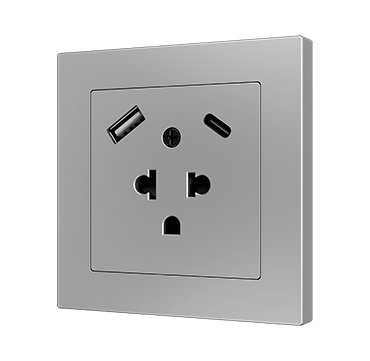

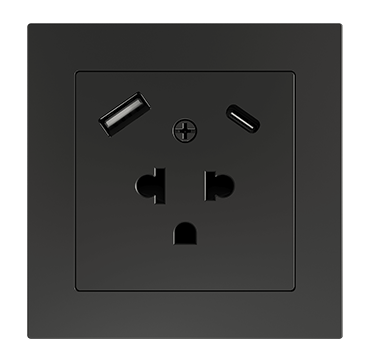

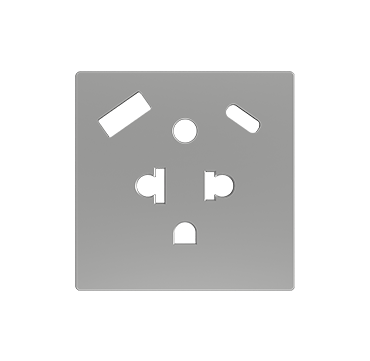

- ZS55 – Euro-American socket cover with USB C and A – Ref. ZS55CEAU2USx
- ZS55 – Frame – 1/2/3/4 modules – Ref. 980000YXX
Y= 1/2/3/4
x = A (Anthracite) / S (Silver) / W (Matt white)
XX = 05 (Anthracite) / 06 (Silver) / 08 (Gloss White) / 09 (Matt white)
