ZS55 is the Zennio series of 55 x 55 mm switches and sockets. They have an elegant and timeless design. They are flush fitting with frames and a perfect integration with capacitive switches Flat 55 and Tecla 55.

Technical features USB Charger

• Nominal voltage: 100 – 240 V ~
• Output voltage: 5 V DC
• Output current: 3.5 A @ 240 V AC
• Standby power consumption < 0.05 W
• Screw terminals
• Screw fixing. Claws are optional

References USB Charger (sold separately)

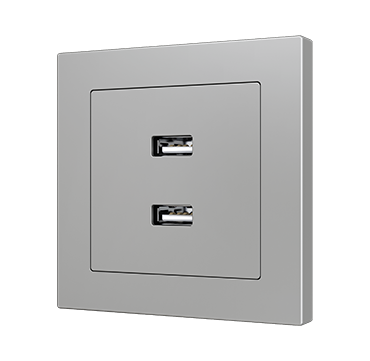

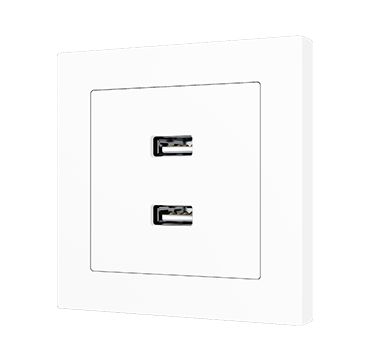

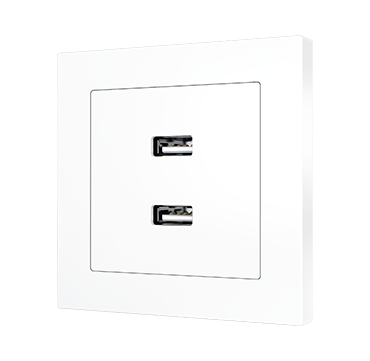

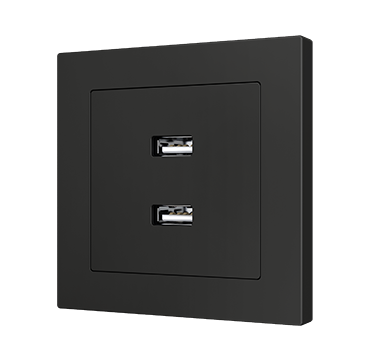

• • ZS55 – Double USB charger insert – ref. 8300007
  • Z555 – ZS55 – Cover plate for double USB charger 55 x 55 mm – ref. 8300008XX
  • ZS55 – 1-gang Frame – ref. 9800001XX
  • ZS55 – 2-gang Frame – ref. 9800002XX
  • ZS55 – 3-gang Frame – ref. 9800003XX
  • ZS55 – 4-gang Frame – ref. 9800004XX

XX = 05 (Anthracite) / 06 (Silver) / 08 (Gloss white) / 09 (Matt white)
